Water Spray Retort Sterilizer
A compact water-spray retort for jar and can sterilization, sized for smaller batch runs than the water-immersion model.
Applications
- — Glass jars and cans
- — Small-batch retort-pouch runs
- — Sauces and preserves in sealed packaging
What It Does
Sterilizes sealed, packaged food by spraying heated water over the load inside a pressurized SS304 chamber, holding a validated time/temperature/pressure cycle to achieve commercial sterility.
See It In Operation
Real production-floor footage, not a promotional render.

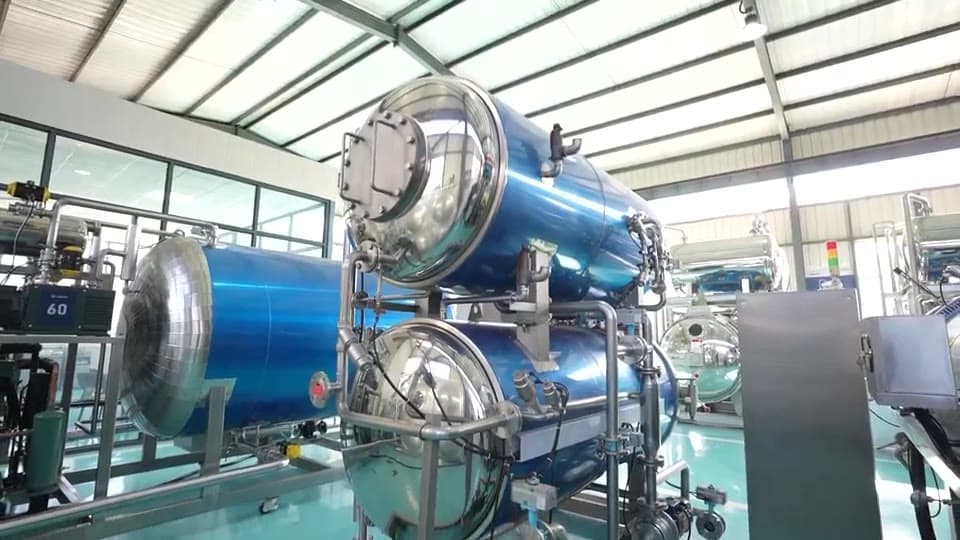

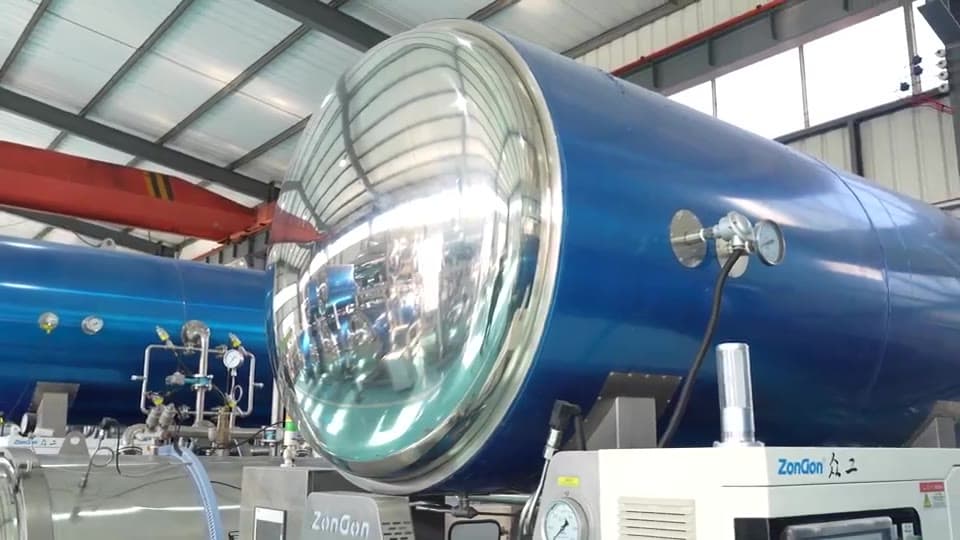

Additional Views
Stills captured from the same real production footage above.
Process Position
Positioned after filling & sealing, before cooling and case packing — the core sterilization step in a canned or jarred-food line.
Key Features
- — SS304 food-grade construction throughout
- — Water-spray heating sized for smaller batches (240 jars/batch)
- — 12 frame sizes (DN600–DN1500) documented in the source spec sheet
Technical Specifications
Evidence tier: technical_spec+quotation. Fields without a confirmed source figure show “Configuration available on request” rather than an invented number.
Available Models
12 frame sizes (DN600–DN1500) documented in the source spec sheet — exact model selected by batch size and pack format.
Suitable Food Products
Related Equipment
Water Immersion (Double-Layer Water Bath) Retort
4828x2119x3314mm, 2100kg, ~720 pouches/batch, SS304, CBM 34; 12 frame sizes in spec sheet
Pure Steam Retort
10 frame sizes DN1000-DN1500 in spec sheet, 0.35MPa/147C
Rotary Retort
ZonGon rotary retort flyer (zongonretort.com), full spec table, 2 documented models (1200/1400): length 3000-4000mm, volume 3.79-6.77 m3, wall thickness 5-6mm, power 11.5-16.5kW, design pressure 0.35MPa, design temperature 147C; other sizes customizable. Real product photo showing rotating basket/carrier inserts. Also documented separately: 6 frame sizes 1400x4000 to 1600x5000mm from an earlier quotation.
Related Solutions
Frequently Asked Questions
How does this differ from the water-immersion retort?
It uses spray rather than full immersion and is sized for smaller batches (240 jars/batch vs. ~720 pouches/batch) — the immersion model suits higher-volume mixed-pack runs.
What pack formats does it support?
Glass jars and cans are documented; exact loading configuration depends on your pack format and frame size.
