Vacuum & MAP Packaging Equipment

Sourced from two manufacturing partners — JUXINJIUZHOU and Juxin (Zhucheng Juxin Industry & Trade), kept clearly labeled as separate suppliers below. Seven of the nine machines carry a full documented technical spec table (chamber size, power, output, dimensions and weight); the other two are documented with real photography and a functional description only. None of these images have been through hero-grade brand cleanup yet — a supplier's logo or phone-number sticker is still visible on some photos, which is why they're shown here as catalog reference images rather than polished hero shots.

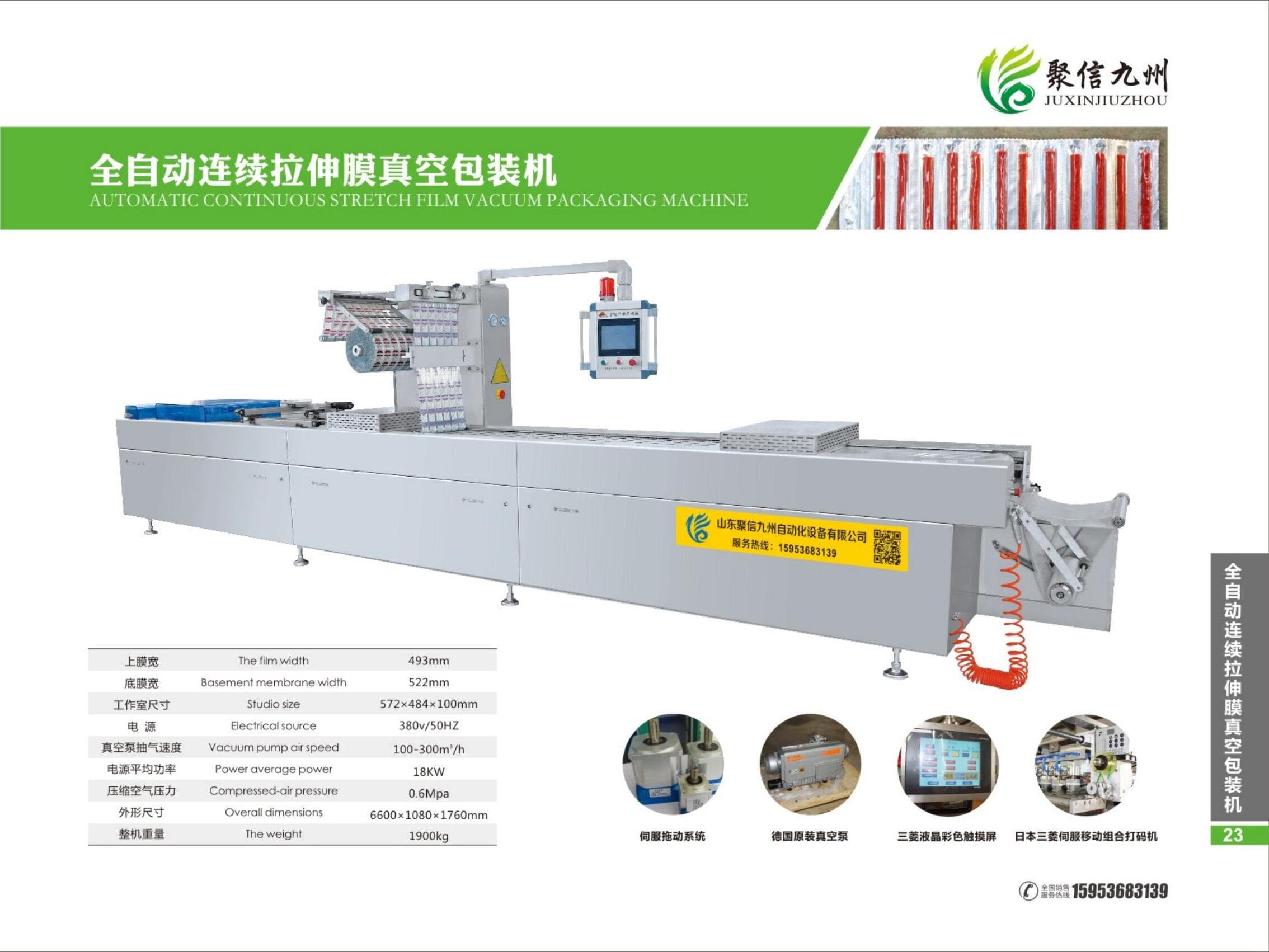

Automatic Continuous Stretch Film Vacuum Packaging Machine

JUXINJIUZHOU catalog p.23, full spec table: film width 493mm, base film width 522mm, studio size 572x484x100mm, 380V/50Hz, vacuum pump speed 100-300m3/h, power 18KW, compressed air 0.6MPa, dimensions 6600x1080x1760mm, weight 1900kg

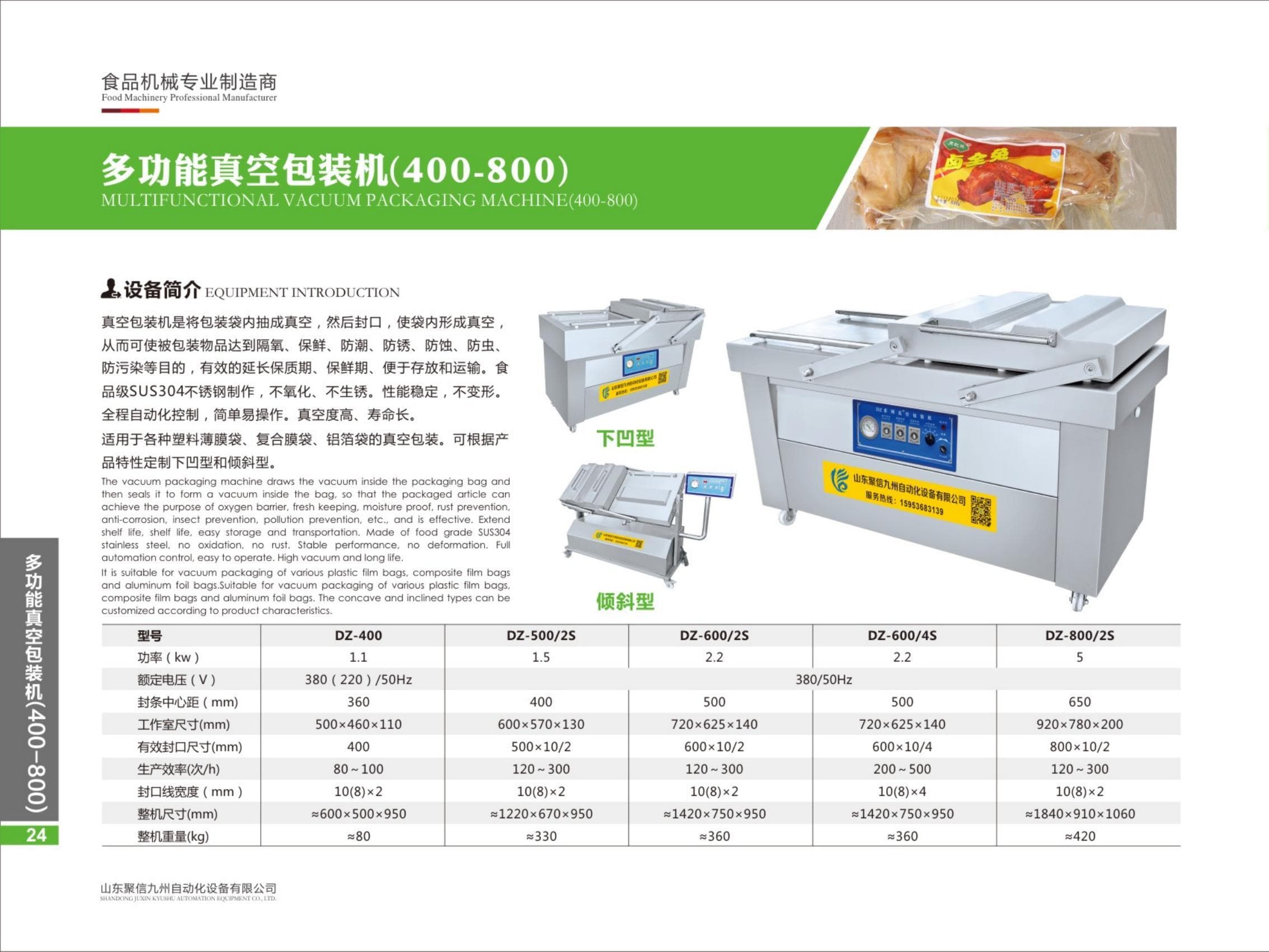

Multifunctional Vacuum Packaging Machine (400-800)

JUXINJIUZHOU catalog p.24, 5-model spec table (DZ-400/DZ-500-2S/DZ-600-2S/DZ-600-4S/DZ-800-2S): power 1.1-5kW, 380(220)V/50Hz, seal length 360-650mm, chamber size 500x460x110 to 920x780x200mm, output 80-300 cycles/h, overall dims 600x500x950 to 1840x910x1060mm, weight 80-420kg. Concave and inclined chamber types available.

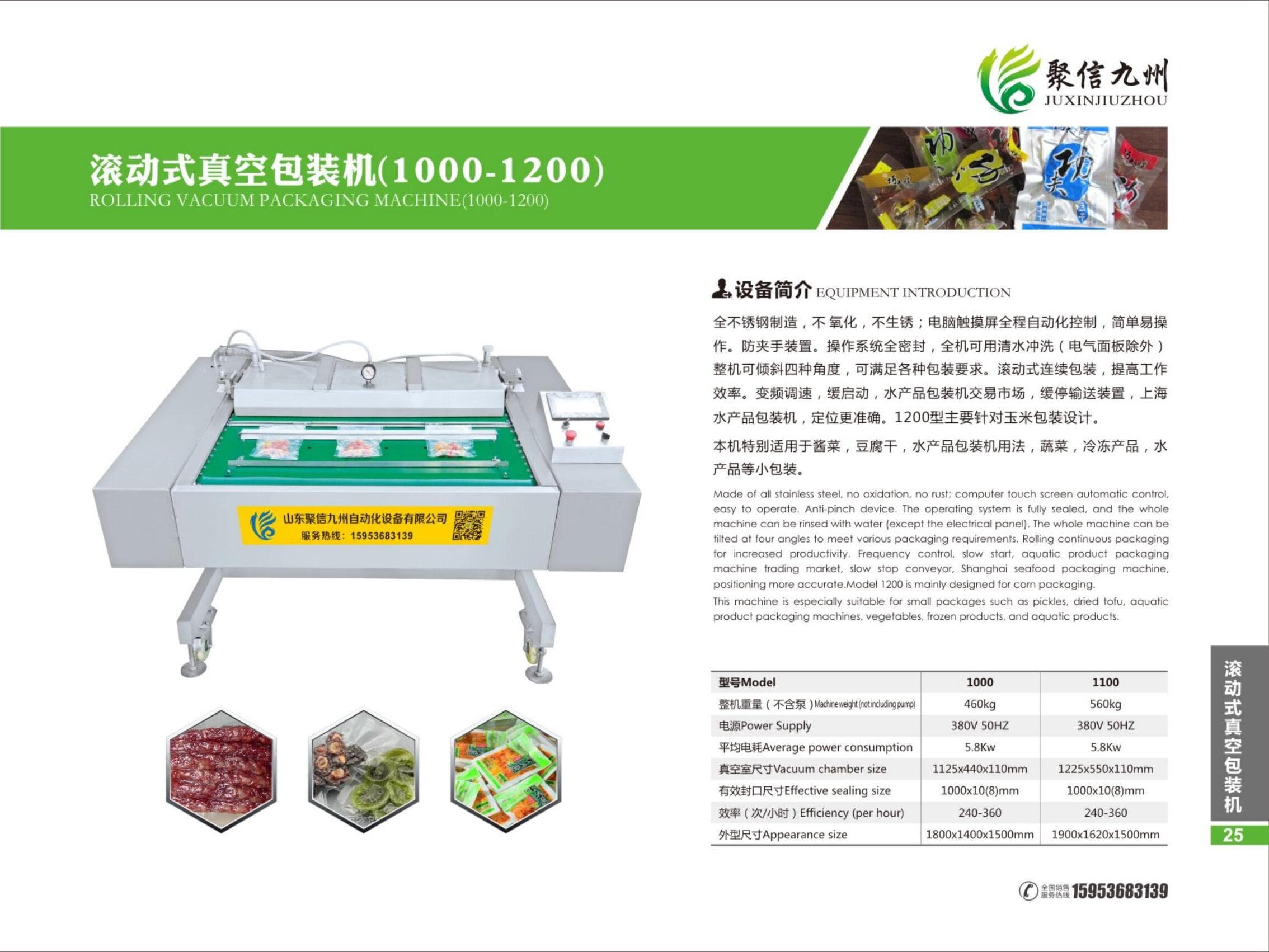

Rolling Vacuum Packaging Machine (1000-1200)

JUXINJIUZHOU catalog p.25, 2-model spec table (1000/1100): weight 460-560kg, 380V 50Hz, power 5.8-5.8kW, vacuum chamber 1125x440x110 to 1225x550x110mm, seal size 1000x10x8 to 1000x10x8mm, efficiency 240-360 cycles/h, dims 1800x1400x1500 to 1900x1620x1500mm. Catalog states Model 1200 'is mainly designed for corn packaging.' All stainless steel, touchscreen PLC control.

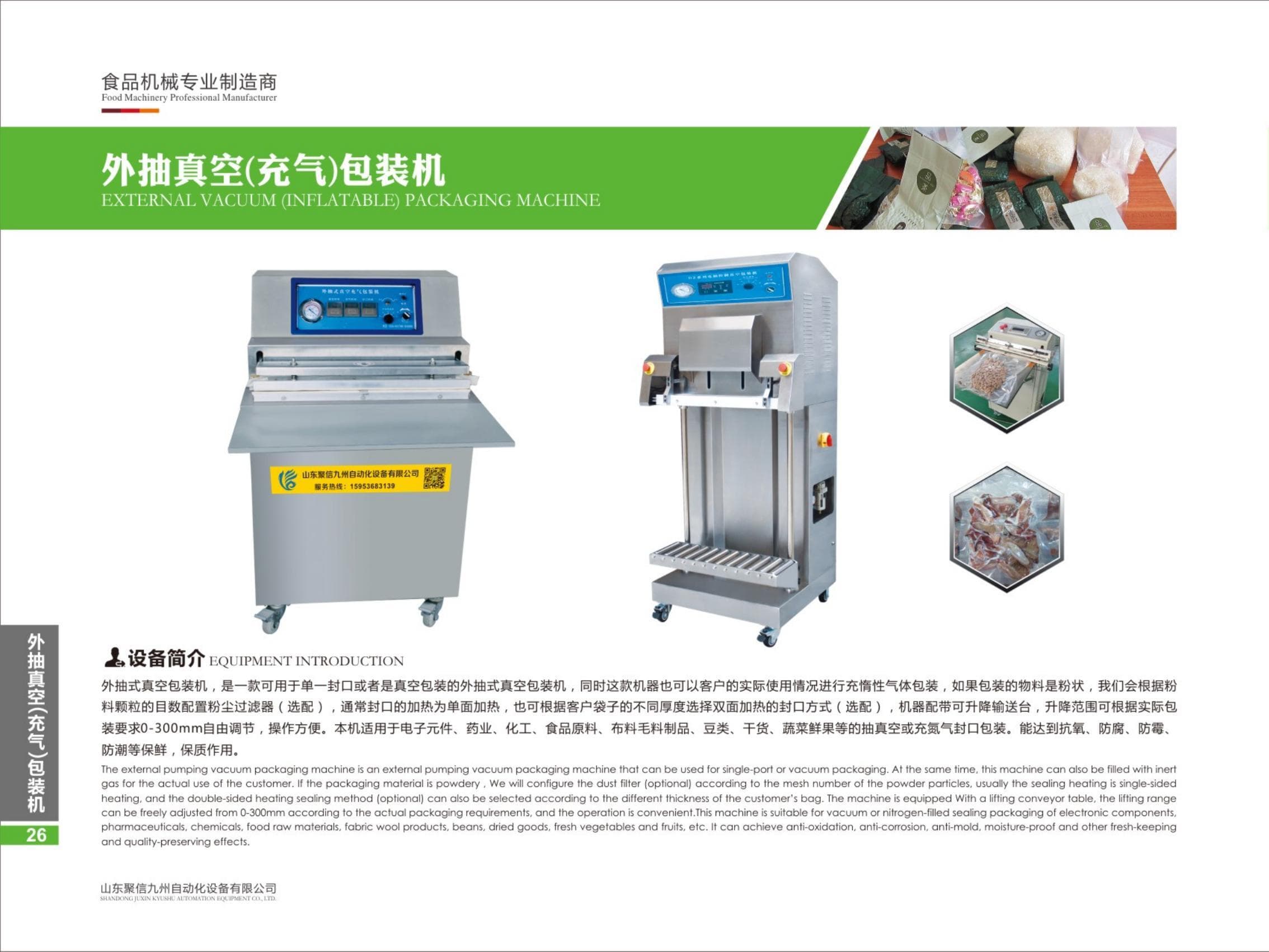

External Vacuum (Inflatable) Packaging Machine

JUXINJIUZHOU catalog p.26: real photo, functional description only, no dimension/capacity table on file. Single or vacuum sealing; can gas-flush with inert gas for powdered products; optional dust filter and lifting conveyor table. A comparable external-suction vacuum machine (vertical/horizontal configurations) is also offered by manufacturing partner Juxin, seen in their packaging catalog p.17 — functional description only, no dimension/capacity table there either.

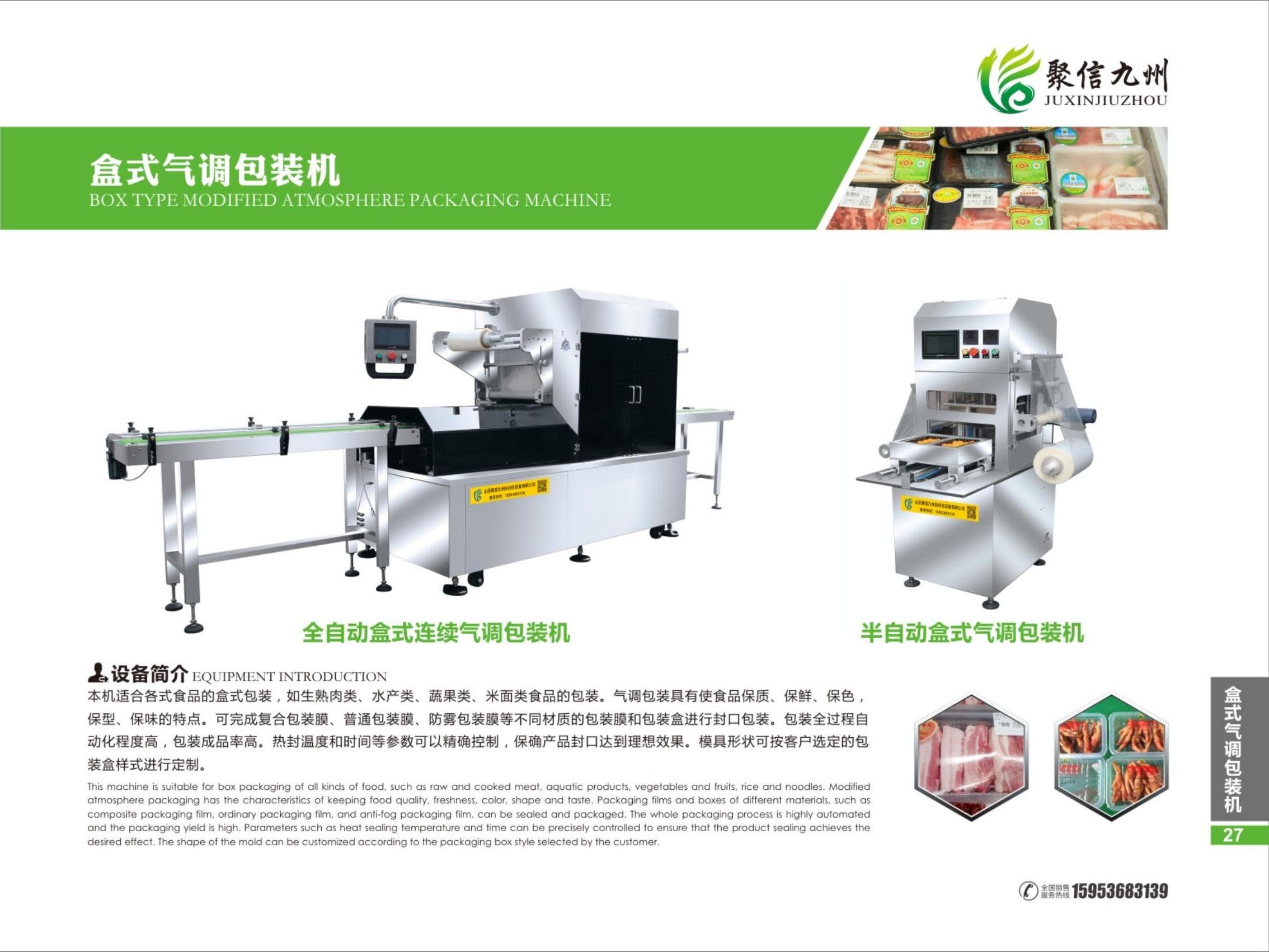

Box-Type Modified Atmosphere Packaging (MAP) Machine

JUXINJIUZHOU catalog p.27: real photo (full-automatic continuous + semi-automatic versions), functional description only, no dimension/capacity table on file. Suitable for raw/cooked meat, aquatic, vegetable, fruit, rice/noodle box packaging.

Cassette Air (MAP) Packaging Machine (DLZ series)

Juxin (Zhucheng Juxin Industry & Trade) packaging catalog p.3-4, full spec table, 3 models (DLZ-320/420/520): base film width 322-522mm, top film width 295-495mm, vacuum degree <=200Mpa, 380V/50Hz, power 7-12kW, dims 4500x800x1750 to 7500x1000x1750mm, weight 1000-1800kg, speed 4-7 cycles/min. For plastic box/cup MAP sealing of cooked food, fruit and PCB-tray-style products.

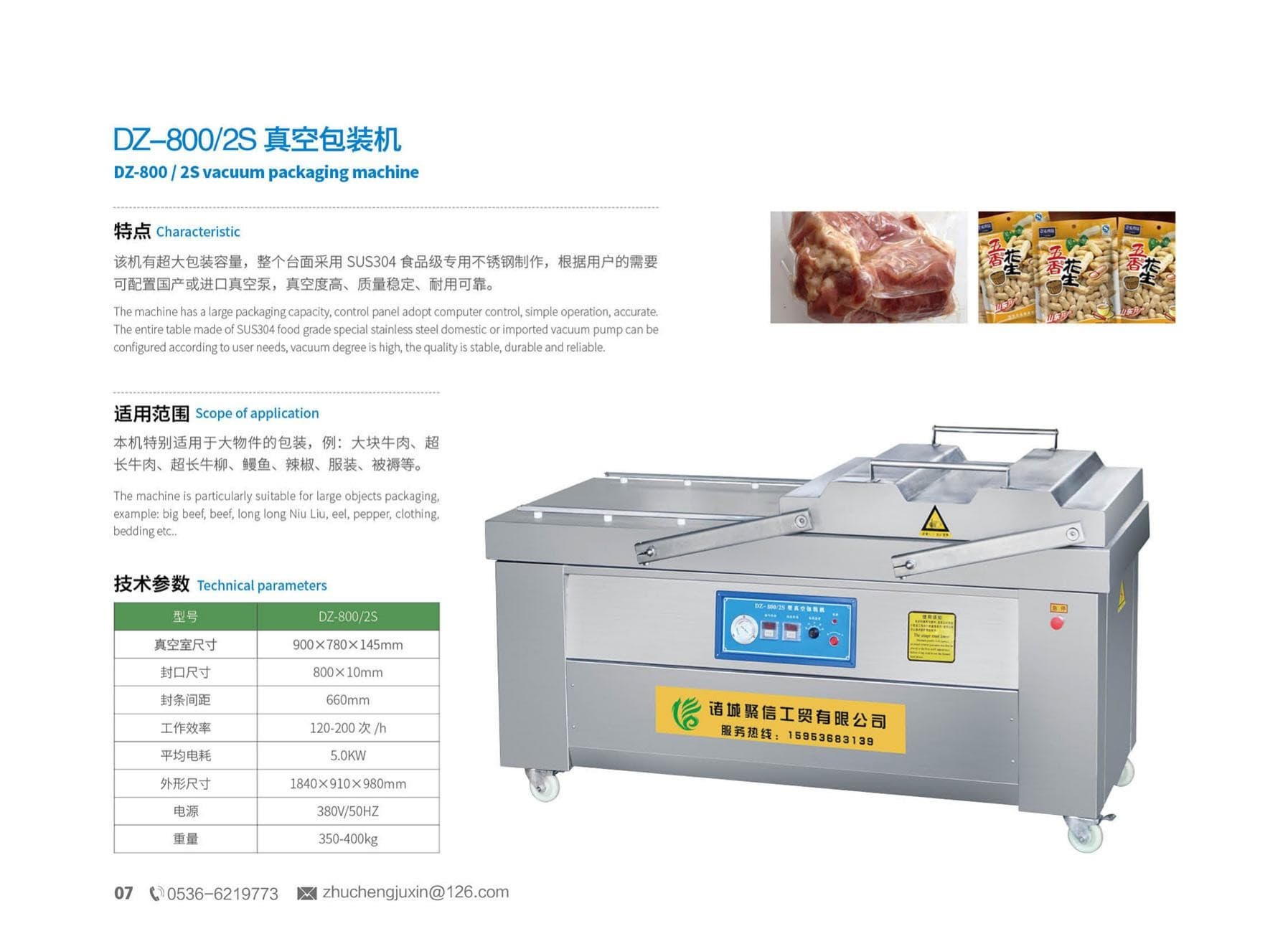

DZ-800/2S Large-Item Vacuum Packaging Machine

Juxin packaging catalog p.7, full spec table: vacuum chamber 900x780x145mm, seal size 800x10mm, seal spacing 660mm, efficiency 120-200 cycles/h, power 5.0kW, dims 1840x910x980mm, weight 350-400kg, 380V/50Hz. Catalog states purpose-built for large-object packaging: big cuts of beef, long eel, whole peppers, clothing, bedding.

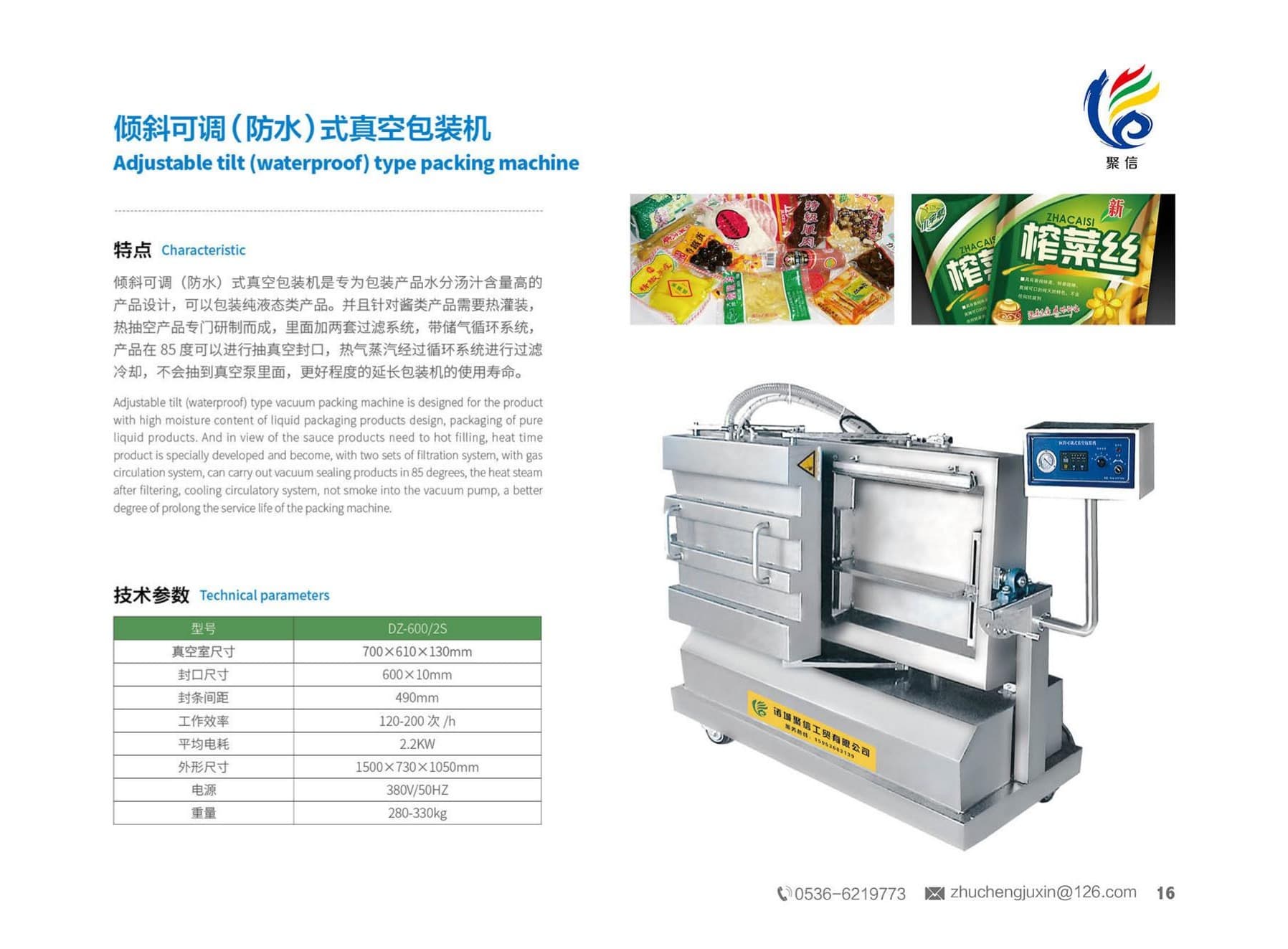

DZ-600/2S Adjustable-Tilt Waterproof Vacuum Packaging Machine

Juxin packaging catalog p.16, full spec table: vacuum chamber 700x610x130mm, seal 600x10mm, seal spacing 490mm, efficiency 120-200 cycles/h, power 2.2kW, dims 1500x730x1050mm, weight 280-330kg, 380V/50Hz. Catalog: tilting chamber design with dual filtration + water-cooling circulation, purpose-built for liquid/soup-heavy and hot-fill products.

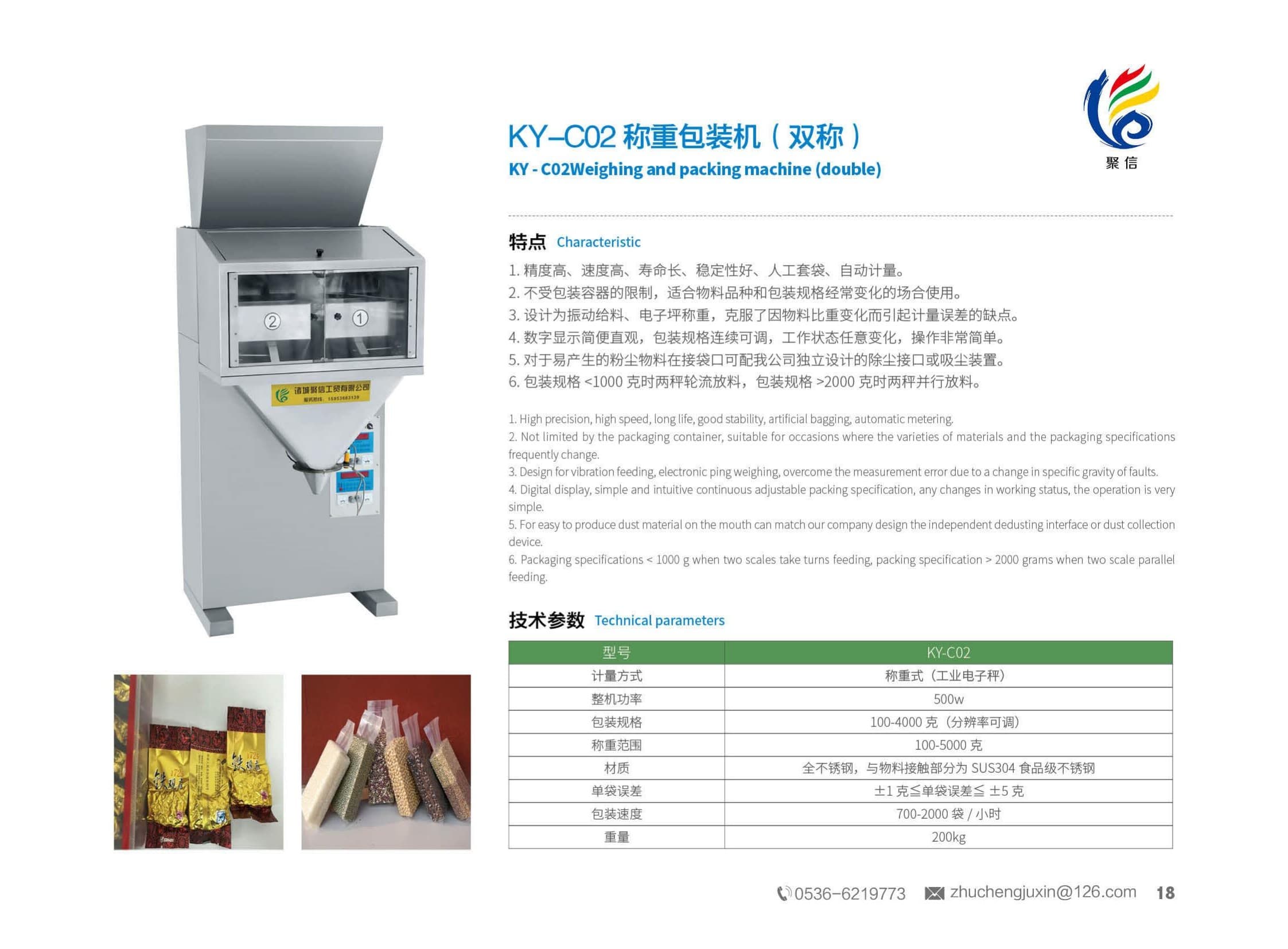

KY-C02 Double-Scale Weighing & Packing Machine

Juxin packaging catalog p.18, full spec table: electronic vibration-feed scale weighing, power 500W, packing spec 100-4000g (adjustable), weighing range 100-5000g, SUS304 food-contact parts, single-bag error +/-1 to +/-5g, speed 700-2000 bags/h, weight 200kg. Distinct from the site's vacuum/MAP machines: this is a weigh-and-bag primary packaging step for granular/piece products (e.g. corn kernels, dried snacks, tea, nuts).
